Visit Troy Custom Detectors To Learn About The Amazing Shadow X5 & X3

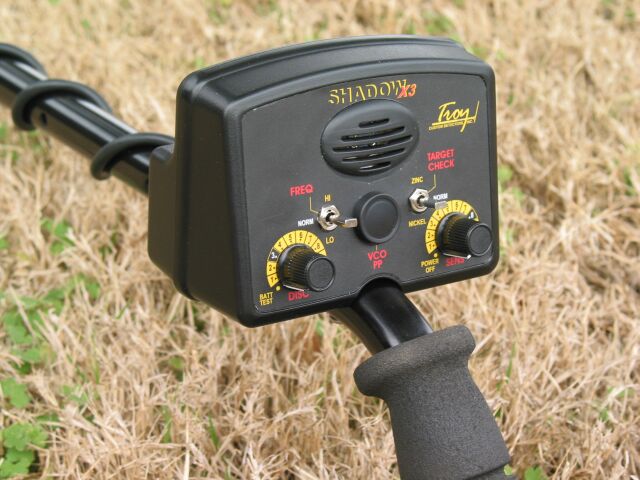

SHADOW X3

THE SHADOW X3 IS NO LONGER AVAILABLE

Ultra-Light Weatherproof Design .2.2 lbs With Battery (May Vary Slightly)
Turn-On-and-Go Operation Fixed Pre-Set Ground Balance
Silent Search Operation All Modes of Operation
VLF Fast Response All Modes of Operation

Operating Modes:
1) Normal Discrimination
2) Target Check 3) VCO Pinpoint (Non Motion)

Audio Discriminator .Full Range (All-Metal)
Ground Balance Fixed Pre-Set Ground Balance
Operating Frequency 19 khz
Frequency Shifter 170 hz Above and Below 19 khz
Standard Search Coil Waterproof 7-Inch Round Concentric Donut
Search Coil Compatibility 9-Inch Accessory Round Concentric and Future TCD Accessary Coils
Coil Cable Length Approximately 3 ft 6 Inches (42 Inches)
Audio Frequency Approximately 550 hz
Audio Output 1 ½ Inch Weatherproof Speaker and a ¼ Inch Weatherproof Headphone Jack
Headphone Compatibility Standard ¼ Inch Stereo Plug
Battery Requirement Single 9 Volt (Alkaline)
Battery Life (Typical) .25 Hours
Battery Compartment Drop-In Weatherproof (No Wires or Connectors)
Battery Door Weatherproof with Positive Lock Fastener
Battery Test On-Demand Variable Audio Tone
Low Battery Alert .Automatic Continuous Audio Tone (6 Volts or Less)
Control Housing Internal RFI Shielding and Weatherproof
Pushbutton Switch Weatherproof
Toggle Switches Weatherproof With Internal 0-Ring in Actuator
Control Knobs With O-Ring & Tension Adjustable
Optimum Temperature 30 to 100 degrees F
Optimum Humidity 0 to 100% R. H.
Rod Design 3 Piece Knock-Down with Locking Ring Stabilizers
Arm Cup Adjustable, Forward & Backward and To Arm Size
Warranty Limited Lifetime
