Visit Troy Custom Detectors To Learn About The Amazing Shadow X5 & X3

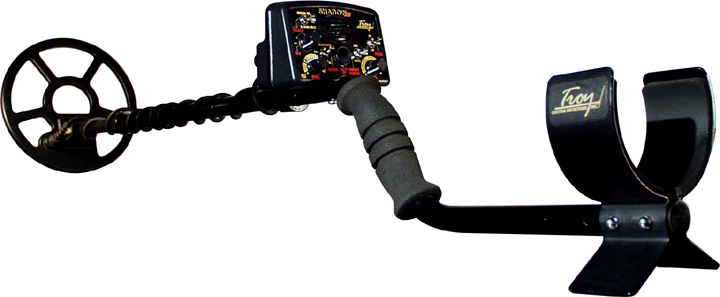

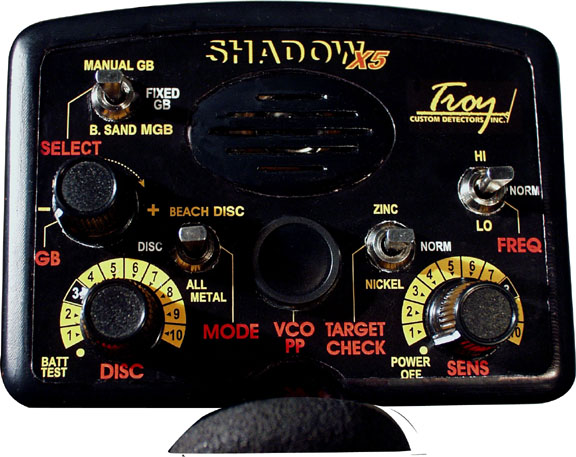

SHADOW X5


Click Image To View Full Size

THE SHADOW X5 IS NO LONGER AVAILABLE

Ultra-Light Weather Proof Design 2.5 lbs With Battery (May Vary Slightly)
Turn-On-and-Go Operation Fixed Pre-Set and Manual Ground Balance
Silent Search Operation All Modes of Operation
Adjustable Audio Threshold All-Metal Auto Tune Operation
VLF Fast Response All Modes of Operation

Operating Modes:
1) Normal Discrimination Fixed Pre-Set or Manual Ground Balance
2) Beach Discrimination Fixed Pre-Set or Manual Ground Balance
3) All-Metal Auto Tune (Motion) Fixed Pre-Set or Manual Ground Balance
4) Black Sand All-Metal Auto Tune (Motion) Manual Ground Balance 5) Target Check Fixed Pre-Set or Manual Ground Balance
6) VCO Pinpoint (Non Motion) Fixed Pre-Set or Manual Ground Balance

Audio Discriminator Full Range (All-Metal)
Ground Balance Fixed Pre-Set and Switchable 10 turn Precision Ground Balance Control
Operating Frequency 19 khz
Frequency Shifter 170 hz Above and Below 19 khz
Standard Search Coil Waterproof 9-Inch Round Concentric Spider
Search Coil Compatibility 7-Inch Accessory Round Concentric and Future TCD Accessary Coils
Coil Cable Length Approximately 3 ft 6 Inches (42 Inches)
Audio Frequency Approximately 550 hz Discrimination, 500 hz All-Metal Auto Tune
Audio Output 1 ½ Inch Weatherproof Speaker and a ¼ Inch Weatherproof Headphone Jack
Headphone Compatibility Standard ¼ Inch Stereo Plug
Battery Requirement Single 9 Volt (Alkaline)
Battery Life (Typical) 25 Hours
Battery Compartment Drop-In Weatherproof (No Wires or Connectors)
Battery Door Weatherproof with Positive Lock Fastener
Battery Test On-Demand Variable Audio Tone
Low Battery Alert Automatic Continuous Audio Tone (6 Volts or Less)
Control Housing Internal RFI Shielding and Weatherproof
Pushbutton Switch Weatherproof
Toggle Switches Weatherproof With Internal 0-Ring in Actuator
Control Knobs With O-Ring & Tension Adjustable
Optimum Temperature 30 to 100 degrees F
Optimum Humidity 0 to 100% R. H.
Rod Design 3 Piece Knock-Down with Locking Ring Stabilizers
Arm Cup Adjustable, Forward & Backward and To Arm Size
Warranty Limited Lifetime
