Introducing the
NEW Tesoro
DeLeón Metal Detector!
Cortés Circuitry
.
Silver Sabre Simplicity
LCD Display with Five Segment
Bar
Graph, Target ID Number and Coin Depth
Indication
|
.
The DeLeón is a Target Identification Detector or T.I.D. The DeLeón is designed
as an easy to use, turn-on-and-go detector. The faceplate has only four controls:
Sensitivity, Discriminate, Threshold and a Mode Switch. It uses the same circuitry
as the Cortés, so you can expect the same depth and sensitivity from the DeLeón
that the Cortés is well known for.

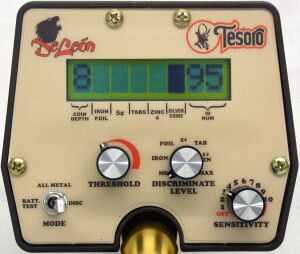

The DeLeón's display screen is one character high by eight characters wide.
It is larger and easier to read than the Cortés display but does not carry
as much information. Starting from left to right on the faceplate, you will
see that the DeLeón has a Coin Depth reading, a five segment bar graph and
a two-digit Target ID Number. The bar graph shows several categories for ID
purposes, but we recommend that it be used with the ID Number for the most
accurate information.

DeLeón Specifications |
|
Operating Frequency |
|
10 kHz |
Searchcoil Type |
|
Concentric |
Searchcoil Size |
|
9 x 8 |
Cable Length |
|
Approx. 3’ |
Audio Frequency All Metal VCO |
|
Approx. 350 to 950 Hz |
Audio Output |
|
2¼" speaker and headphone jack |
Headphone Compatibility |
|
¼” stereo plug |
Weight (may vary slightly) |
|
2.98 lbs |
Battery Requirement |
|
Eight AA (alkaline) |
Battery Life (typical) |
|
10 to 20 hours |
Optimum Temperature Range |
|
30° to 100° F |
Optimum Humidity |
|
0 to 75% R.H. |
Operating Modes |
|
No Motion All Metal |
|
|
Silent Search Discriminate |
